Name: Solar extension cable, MC4 compatible, 2x 4 mm² (12 AWG), 2 m, IP68
Brand: revolt
SKU: ZX3452
Price: 20.95 CHF
Availability: InStock

Household, Garden, DIY » Household » Home Electronics & Electrical Appliances » Solar Panels, Solar Cells » Solar extension cable, MC4 compatible, 2x 4 mm² (12 AWG), 2 m, IP68

revolt

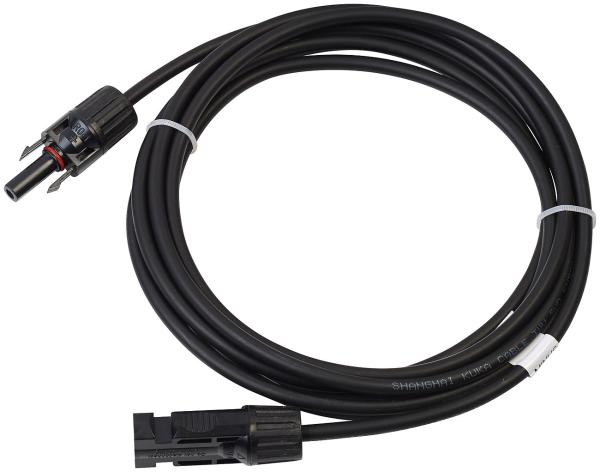

Solar extension cable, MC4 compatible, 2x 4 mm² (12 AWG), 2 m, IP68

Link has been copied to the clipboard!

-54%

Description

Solar modules safely wired: Your new solar extension cable is tested according to standard H1Z2Z2-K and is thus suitable for free-moving and free-hanging use as well as for fixed installation. And it also works in and on protection-insulated devices and systems with protection class II as well as in potentially explosive atmospheres.

Solar modules wired quickly: The solar cable is laid in no time at all, even underground. And thanks to pre-installed MC4-compatible connectors, it‘s connected in a snap - for your solar system like a pro!

Extra-rugged: thanks to flame-retardant, halogen-free and electron-beam crosslinked XLPO insulation. The jacket is also UV and ozone resistant. Thus, the cable neatly withstands environmental influences.

More information Less information

Specification

High-quality copper cable with 2x 4 mm² (12 AWG) with MC4-compatible connectors
Suitable for use in all photovoltaic systems for cabling solar modules
For rated voltage up to 1,000 volts (AC) / 1,500 volts (DC)
Rated current: 30 A
Tested according to standard H1Z2Z2-K (EN50618): suitable for free-moving and free-hanging use as well as for fixed installation
Can also be installed underground
XLPO insulation: flame retardant, halogen-free and electron beam crosslinked
Jacket additionally UV and ozone resistant
Waterproof (IP68)
Temperature application range: -40 to +90 °C
Length: 3 m, weight: 391 g
