tka Köbele Akkutechnik

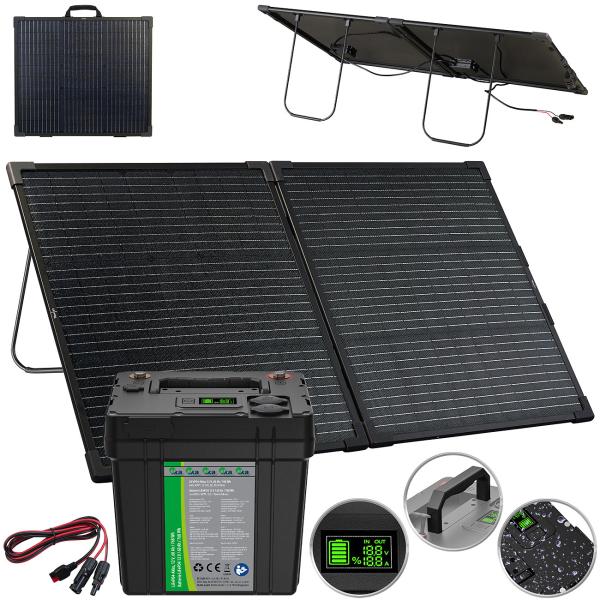

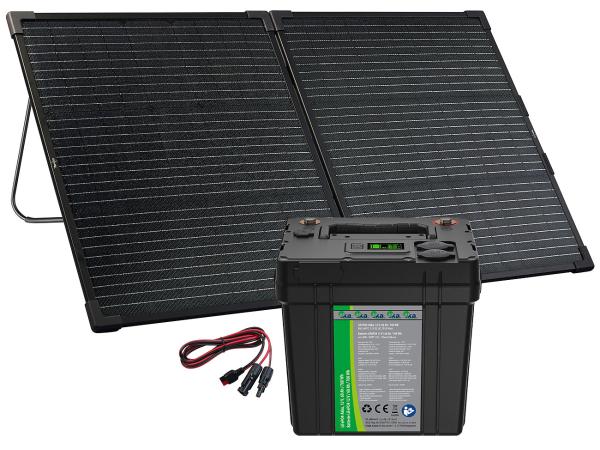

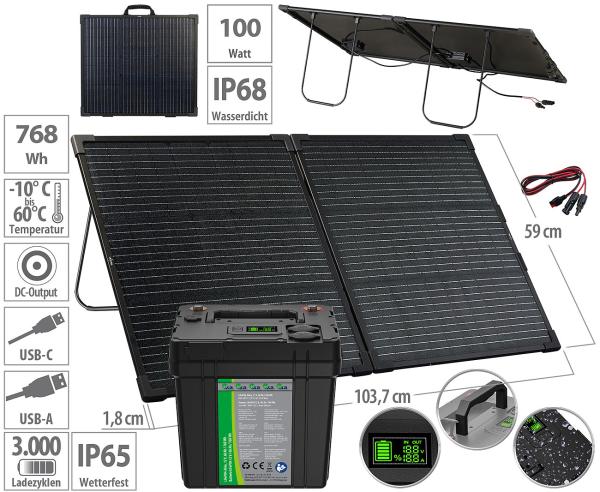

Solar power set: LiFePO4 battery with 100 W solar panel, 768 Wh, 12 V DC, PD

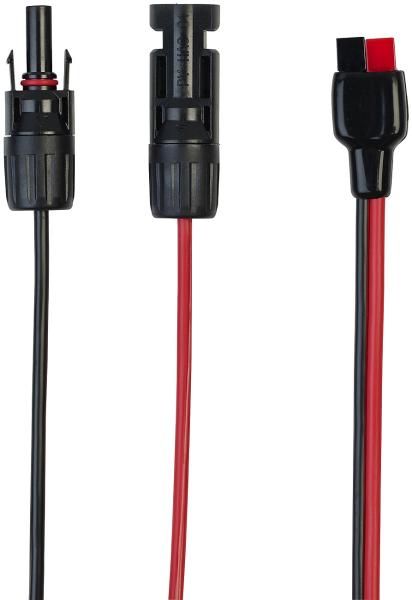

• LiFePO4 battery including solar panel, charging cable (Anderson to MC4 compatible) and German instructions

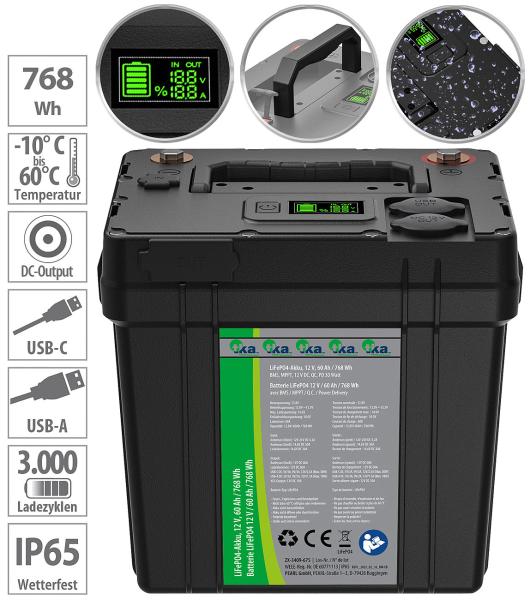

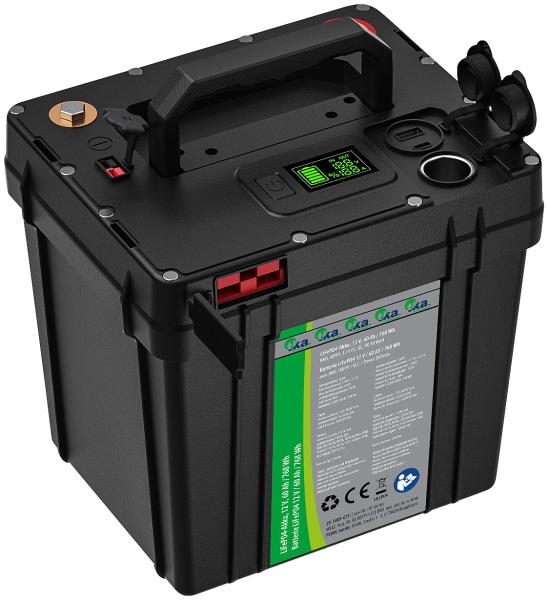

LiFePO4 battery:

• Absolutely maintenance-free and with BMS technology

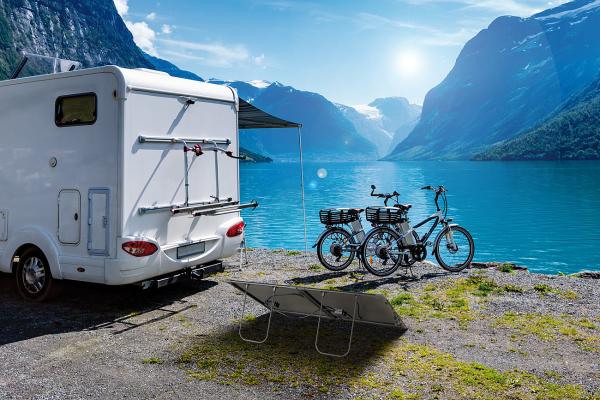

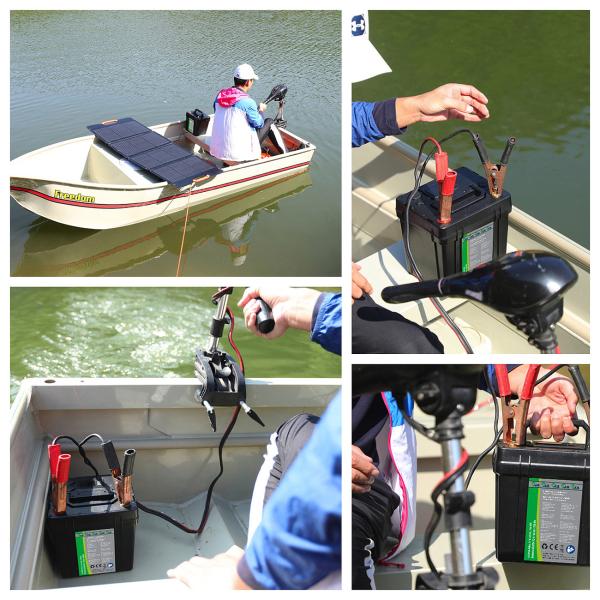

• Also suitable for permanent installation, e.g. in motorhomes (a DC/DC converter may be required for charging at the alternator)
• Reliable performance even in case of partial discharge
• Low self-discharge: long storage is possible

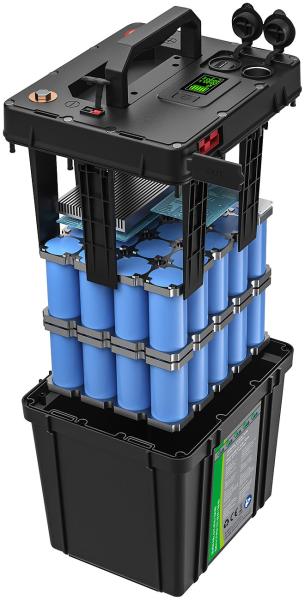

• Integrated battery management system (BMS) for optimized charge and discharge control: protects the battery in terms of efficiency and service life
• LiFePO4 technology with many advantages over lead-acid batteries: much lighter, twice as effective discharge and charge capacity, 6x longer lifetime, safer, maintenance-free
• Delivery in charged condition
• Series and parallel connection with up to 4 batteries possible
• Nominal capacity: 60 Ah / 768 Wh
• Rated voltage: 12.8 V
• Charging current: 60 A
• DC output via cigarette lighter socket: 12 volts up to 10 A / 120 watts, e.g. for chargers, travel hair dryers, etc.
• USB Type C with Power Delivery up to 30 watts: for fast charging of compatible mobile devices with USB-C charging port
• Charging current with automatic adjustment: 5 volts to 3 A / 15 watts, 9 volts to 3 A / 27 watts, 12 volts to 2.5 A / 30 watts
• USB Type A with Quick Charge 3.0: charges compatible mobile devices up to 4 times faster than a regular power adapter, backward compatible with Quick Charge 2.0
• Charging current with automatic adjustment: 5 volts, 3 A / 15 watts, 9 volts, 2 A / 18 watts, 12 volts, 1.5 A / 18 watts

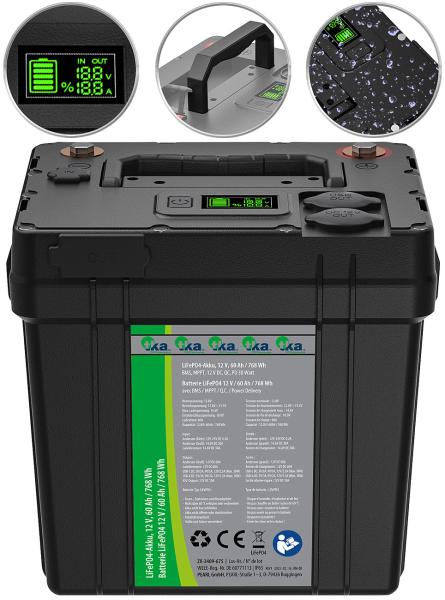

• Integrated LED display: shows battery status and currents (input / output)
• Operating temperature: -10 to +60 °C
• After 3,000 charging cycles the battery still reaches 80% of its initial capacity, up to 10 years lifetime
• Integrated LiFePO4 battery with 768 Wh, charges via solar panel and 12 Volt DC
• Integrated MPPT charge controller for 1 solar panel unit with 12 - 24 volts DC: particularly efficient current yield
• Solar input: max. 4.2 A / 80 Watt (via Anderson socket)
• In black with carrying handle
• Weatherproof: IP65
• Dimensions: 202 x 205 x 170 mm, weight: 7,33 kg

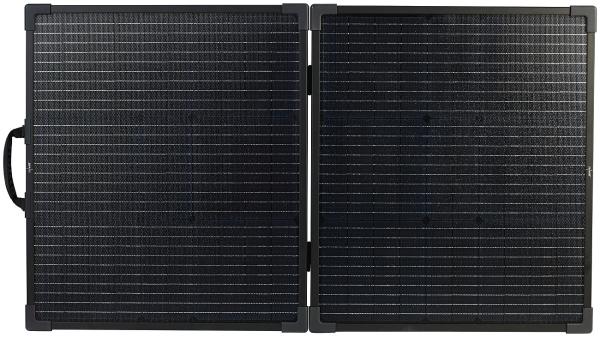

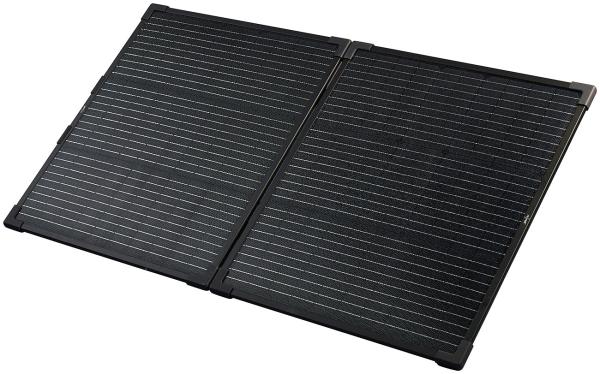

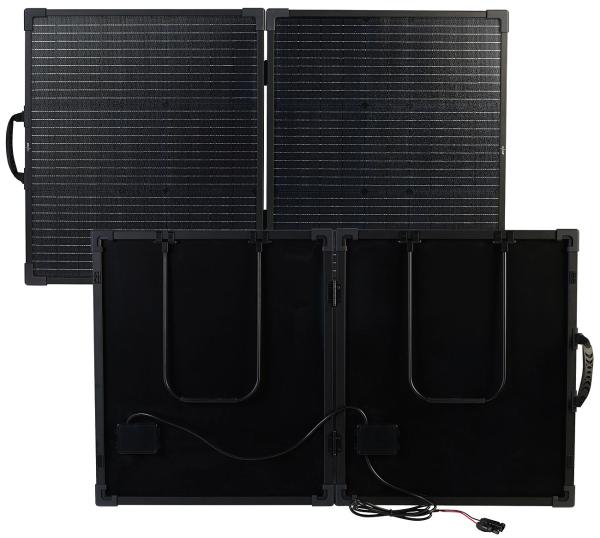

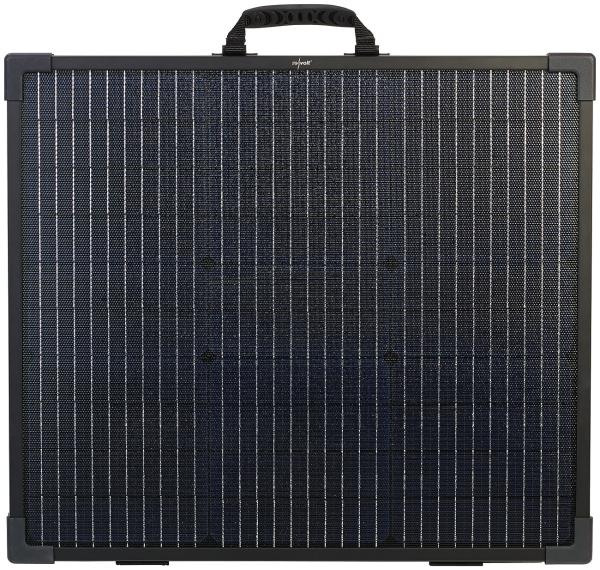

Foldable solar panel:

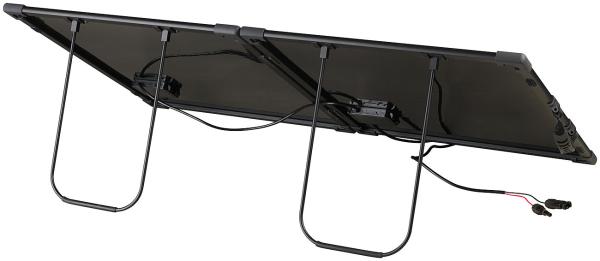

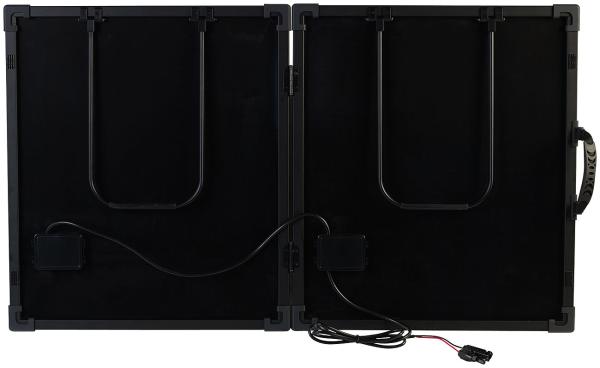

• 2 fold-out legs for secure stand at optimal angle
• Folded securely with Velcro closure
• Carrying handle and pocket for cable integrated
• Power (Pmax): 100 Watt (+/- 5%)
• Maximum mains voltage (Vmp): 17.1 Volt DC
• Open circuit voltage (Voc): 20.52 Volt DC
• Rated current (Imp): max. 5.84 A
• Short circuit current (Isc): 6.13 A
• Maximum system voltage: 1,000 volts DC
• Waterproof: IP68
• Saltwater-resistant thanks to full-surface ETFE coating: also suitable for marine use
• Operating temperature: -40 to 85 °C
• Fast load front: 5,400 Pa, wind load rear: 2,400 Pa
• Connection via integrated cable with MC4-compatible connector plug

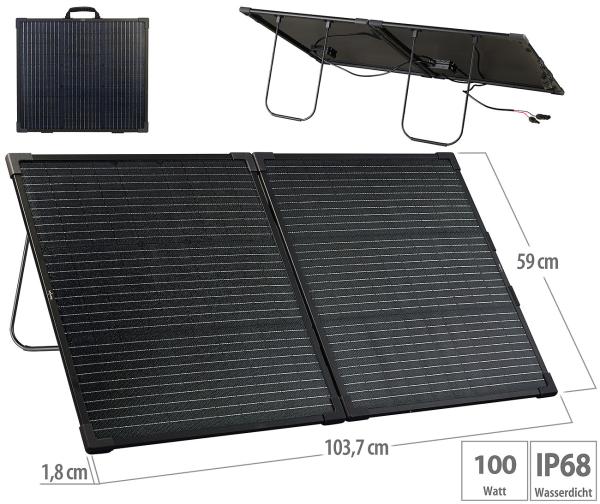

• Dimensions unfolded: 103.7 x 59 x 1.8 cm, folded: 51.3 x 59 x 3.6 cm, weight: 3.6 kg
